A versatile, height-adjustable insect screen, ensuring smooth and reliable operation.
Engineered for flexible on-site height tuning during installation, while maintaining everyday convenience and comfort.
Features
Height-adjustable
Allows on-site height customization by trimming the unit for the perfect fit.
Smooth Operation with Light Force
The screen opens and closes effortlessly with a gentle push using just one hand.
Durable, water-washable mesh
Water-resistant polypropylene (PP) mesh for easy cleaning.
Barrier-Free Design
Access without limits
Specification

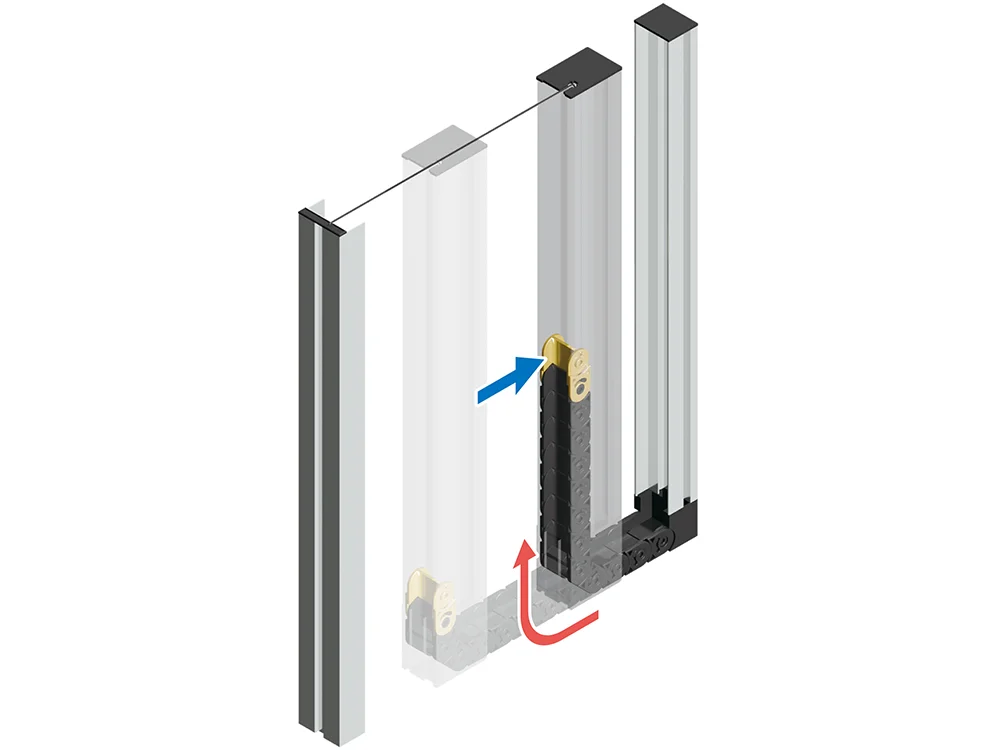

Wiring
Functions with wire at the top and Caterpillars at the bottom.

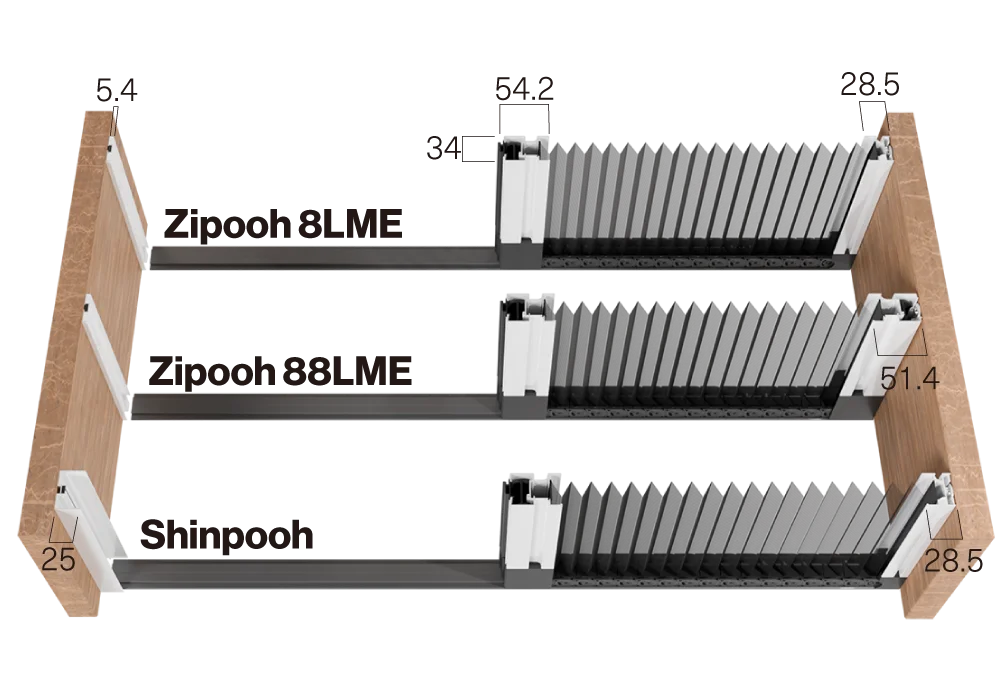

Body Size Comparison by Specification
Zipooh and Shinpooh use the same aluminum profile for the main unit.
About Pleat Net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Net with Stamp-pleating Technology achieves higher rigidity and mechanical resistance keeping the entire screen upright.
Welded intersections to minimize mechanical failure of the mesh.
Net Colors
Black
Provides a clear view and allows you to enjoy the scenery.
Gray (H ≤ 2600 mm)
Offers a shading effect and reduces visibility from outside.
How to measure

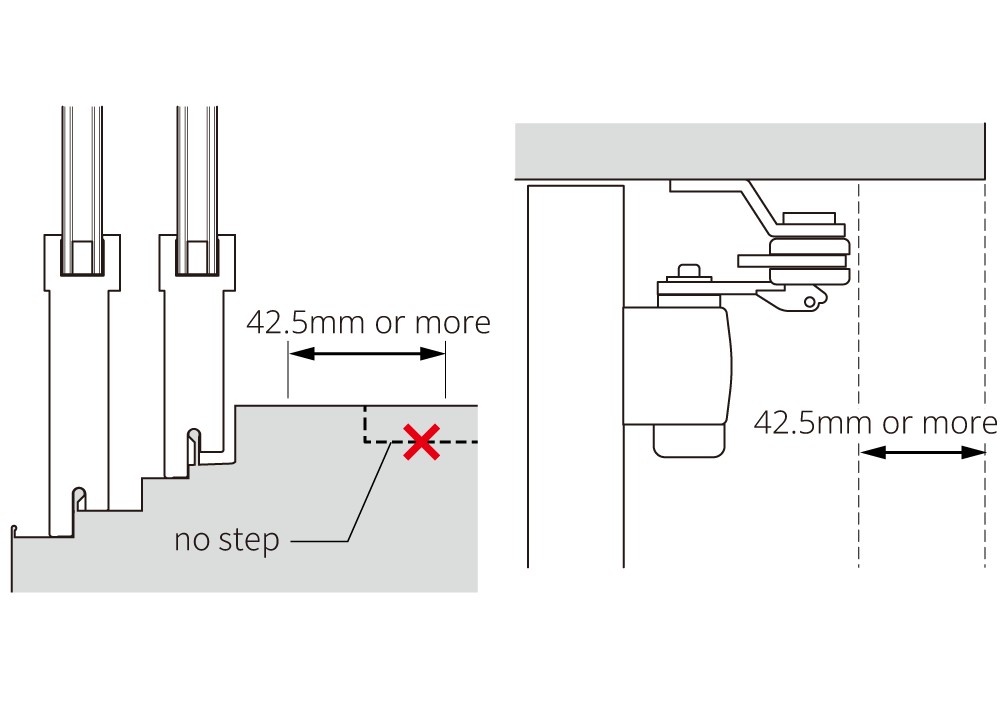

Installation conditions
- There should be no step or height difference on place installing.
- Make sure that door knob, handle, closer do not interefere the screen door.
- Installing location opening must be parrallel and perpendicular.。
Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
The top margin of the product allows you to adjust ±5mm in height.
