TOP > INSECT NET > Pleat Net Side Fix

INSECT NET

Pleat Net Side Fix


Metaco Pleat Net Side Fix (20mm)

What is good about Metaco Pleat Net (Side fix) for window is that
you can close it when necessary and can store it when not in use.
We use a magnetic specification to fully close the single type to
the frame or to connect double slidings somewhere in the middle.

Feature



Install on various types of windows
From sliding window to outswinging window: Metaco Pleat Net Side Fix can be installed in various types of windows.
Maximum workable sizes are 1,300mm for single type and 2,600mm for double type.

In use (Closed)


Retracted (Opened)
Retract when not in use
Pleated net will be out of sight when the sliding door is retracted.
Narrow posts naturally fits into the window casing and will not block the view.

Easily installable to your window
Requires only a screw driver to install and fix the insect screen.

Color Variations

Colors available
White
Silver
Champagne
Gold
Black

*Product image for illustration purposes only. Actual product may vary.
New Colors
Black
Gray

※Maximum product height for grey net is H2,400mm.

Specification

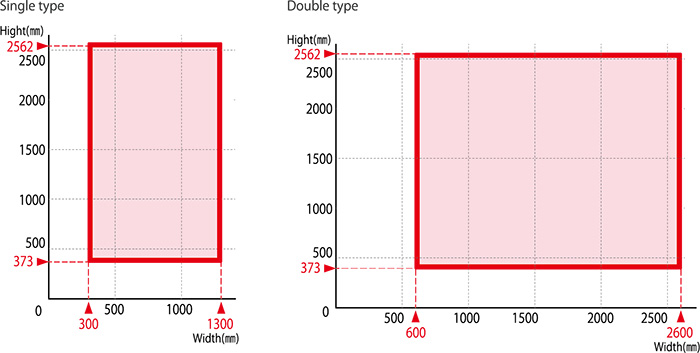

○Workable sizes




Method of measuring


○Installation
Install location should meet the conditions below;

1. All four sides must be flat when installing the product.

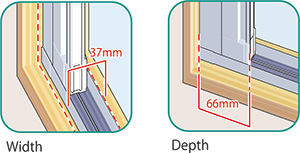

2. Window casing requires more than 37mm.
3. Window handles should not interefere with the product movement.
4. The opening should be squared, paralleled and all 4 corners right angled.

○Measuring

Check the install location and measure the width and height of your opening.
NOTE : Measure the opening width and height in 2 or 3 different places, as many openings are not square.
When placing your order, use the biggest size of the measurements.
NOTE:There are adjustment ranges for installation: ±2mm on width and ±10mm on height.


Embedding the frames will create neat and tidy finish.
The pleat net is retracted and kept compact when not in use.
The product depth is 31mm.



Color Variations

Colors available
White
Black

New Colors

Black
*Product image for illustration purposes only. Actual product may vary.
