Designed for large openings, this pleated screen accommodates widths up to 3,900 mm × 3,000 mm (H) for single-door configurations, and up to 7,800 mm × 3,000 mm (H) for double doors.
Features
Supports Large Openings
Suitable for large openings up to 7,800 mm wide × 3,000 mm high
Smooth Operation with Light Force
The screen opens and closes effortlessly with a gentle push using just one hand.
Safe and Reliable Design
Engineered for everyday use with safety and reliability in mind.
Easy Installation
Effortless setup, instant enjoyment
Specification

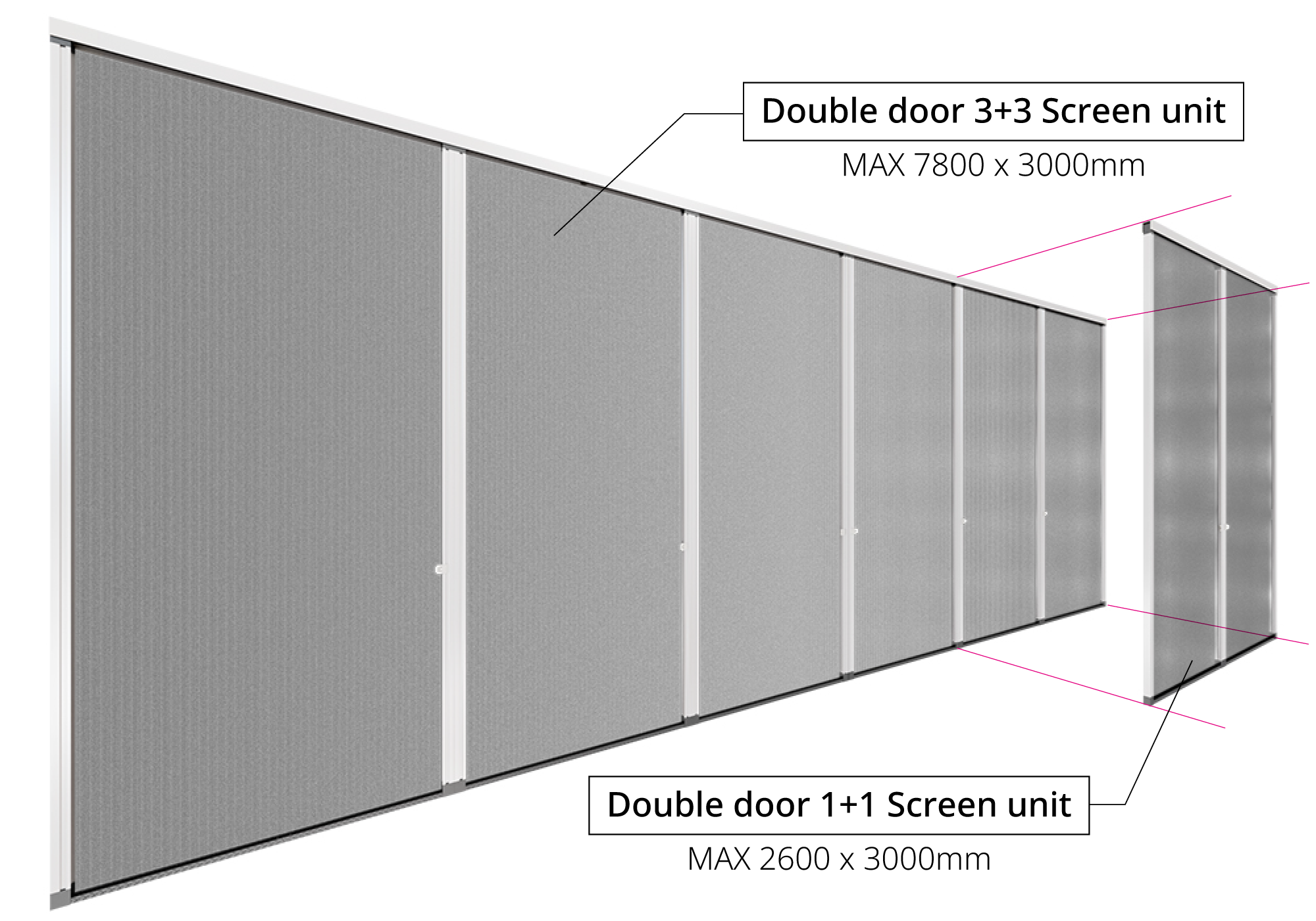

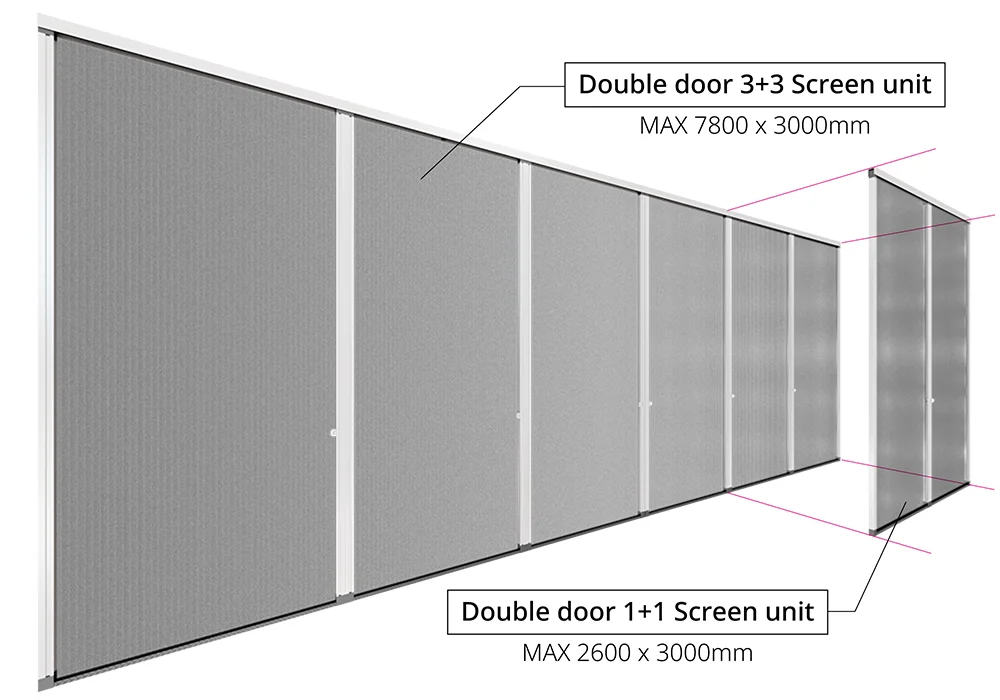

2-panel construction（for widths up to 2600 mm)
The Caterpillar Tandem is a pleated screen system designed for large openings. By combining multiple screen units, it can accommodate various sizes.
Connection Section
Screen units are connected using a tandem plate. Simply press the units together for easy attachment.

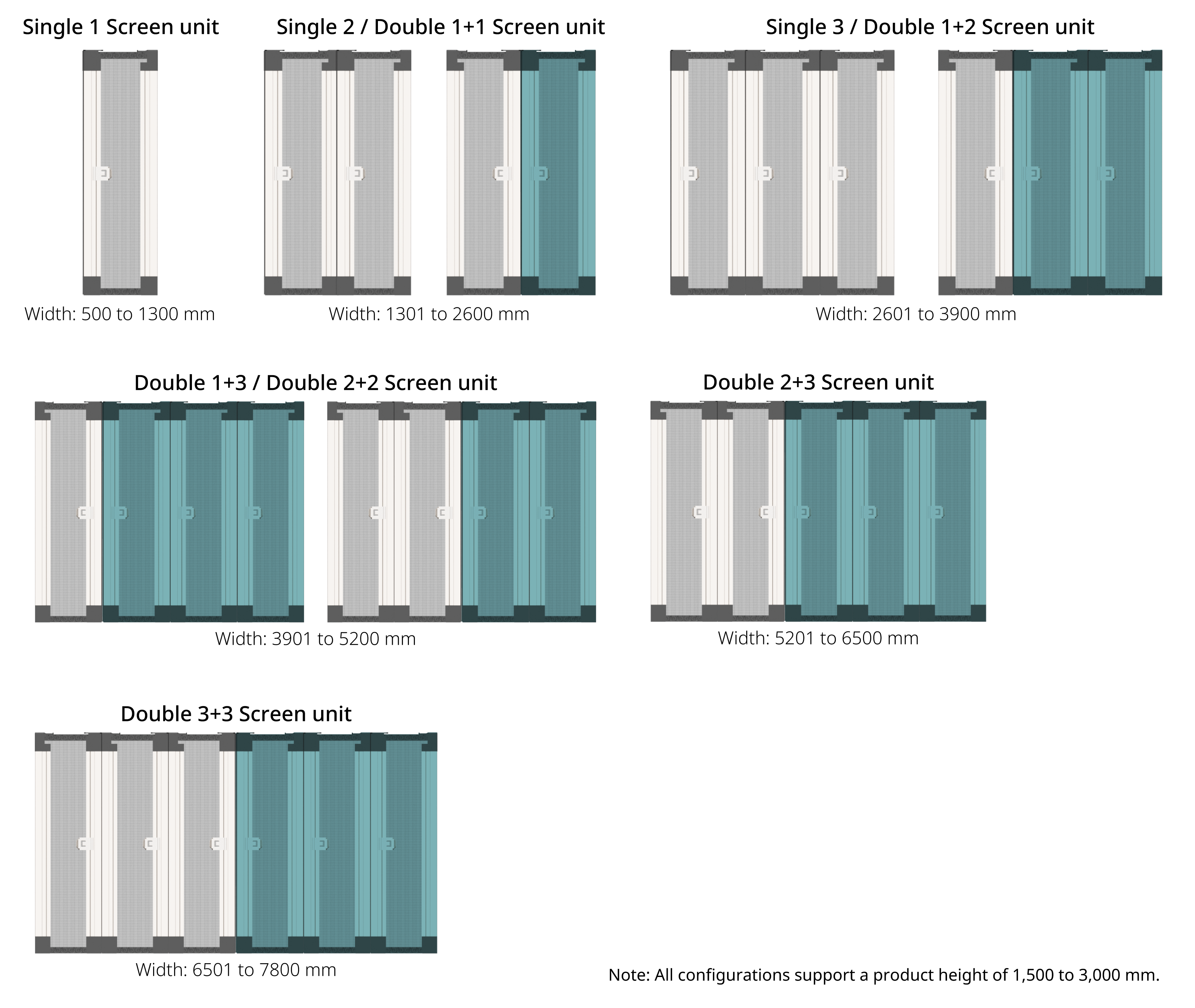

Door Variations
About Pleat Net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Net with Stamp-pleating Technology achieves higher rigidity and mechanical resistance keeping the entire screen upright.
Welded intersections to minimize mechanical failure of the mesh.
How to measure

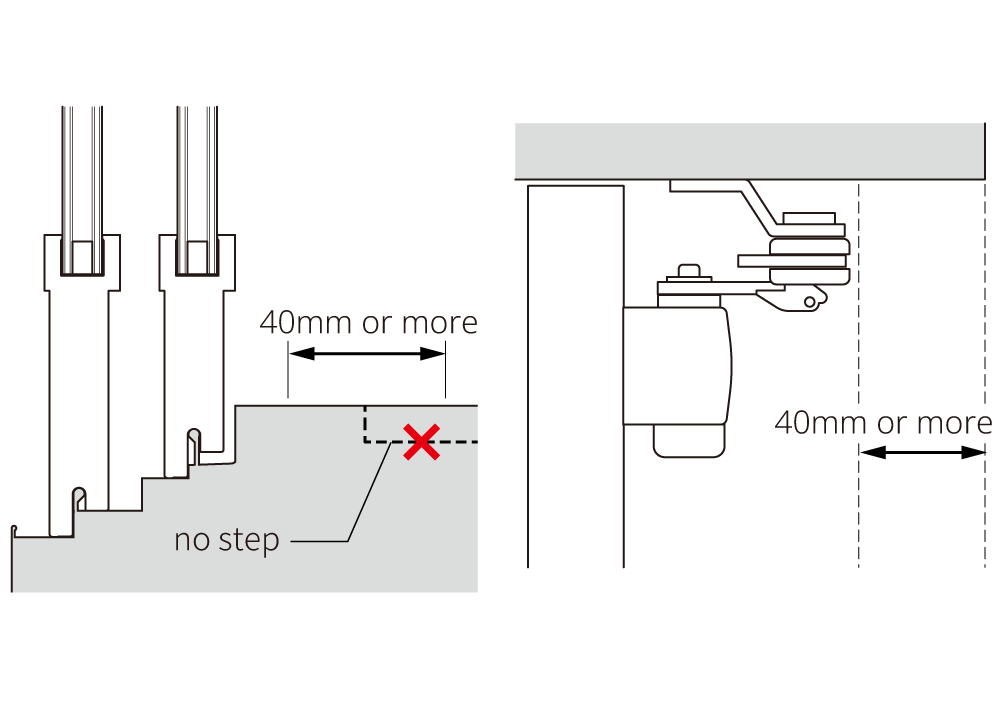

Installation conditions
- There should be no step or height difference on place installing.
- Make sure that door knob, handle, closer do not interefere the screen door.
- Installing location opening must be parrallel and perpendicular.
Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
The top margin of the product allows you to adjust ±10mm in height.
