A sleeker option, ideal for smaller windows. Also available in a recessed version for seamless integration.
Features
Perfect for Small Windows

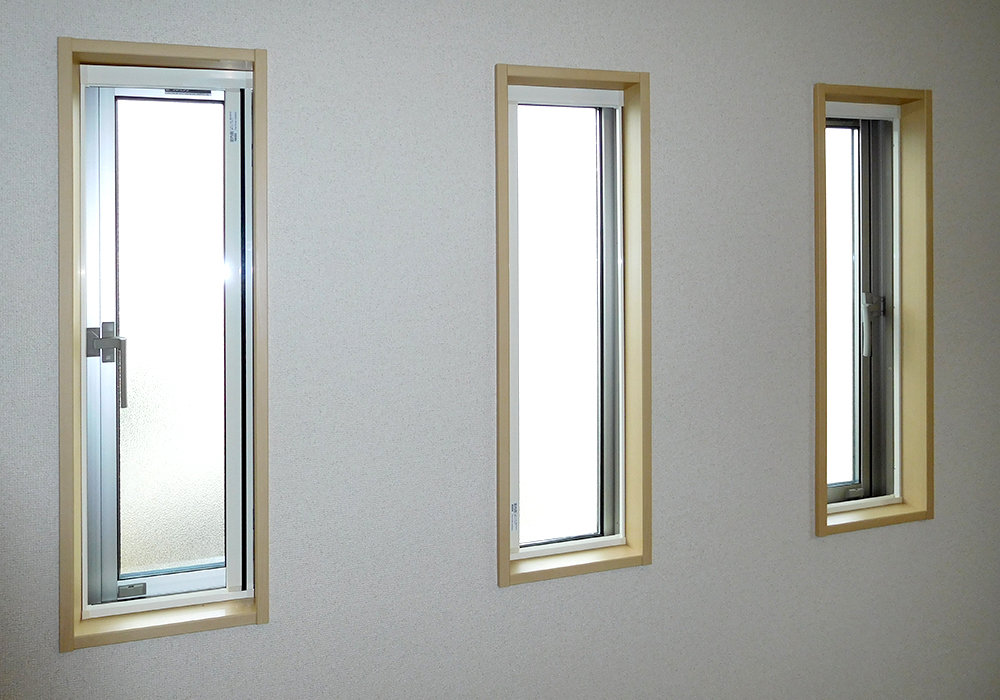

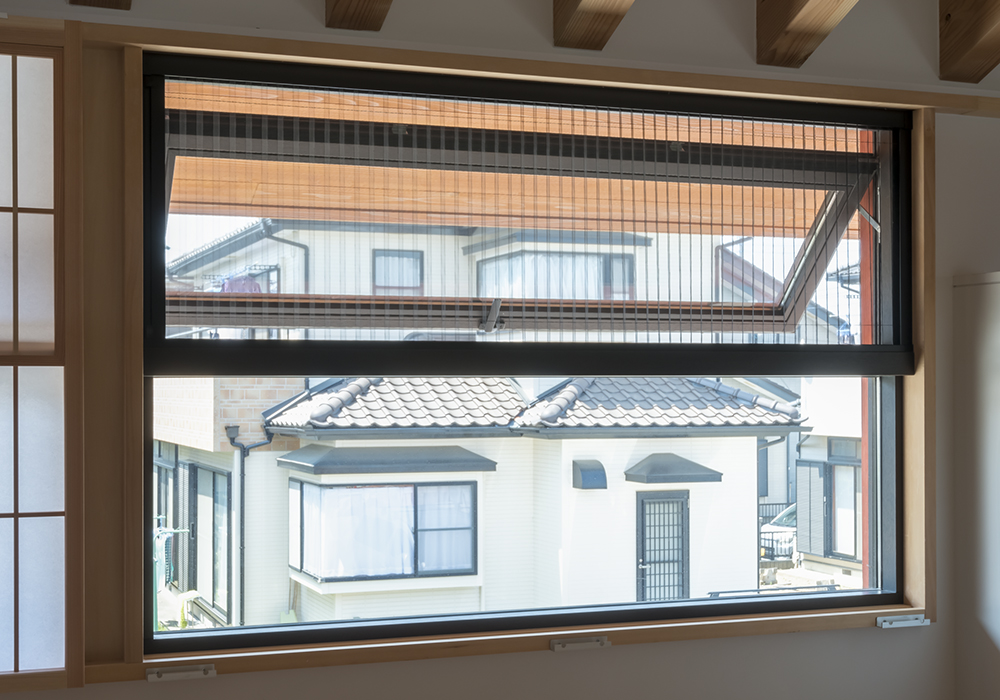

The 15 mm model is a slim, compact screen ideal for small windows.
Retractable

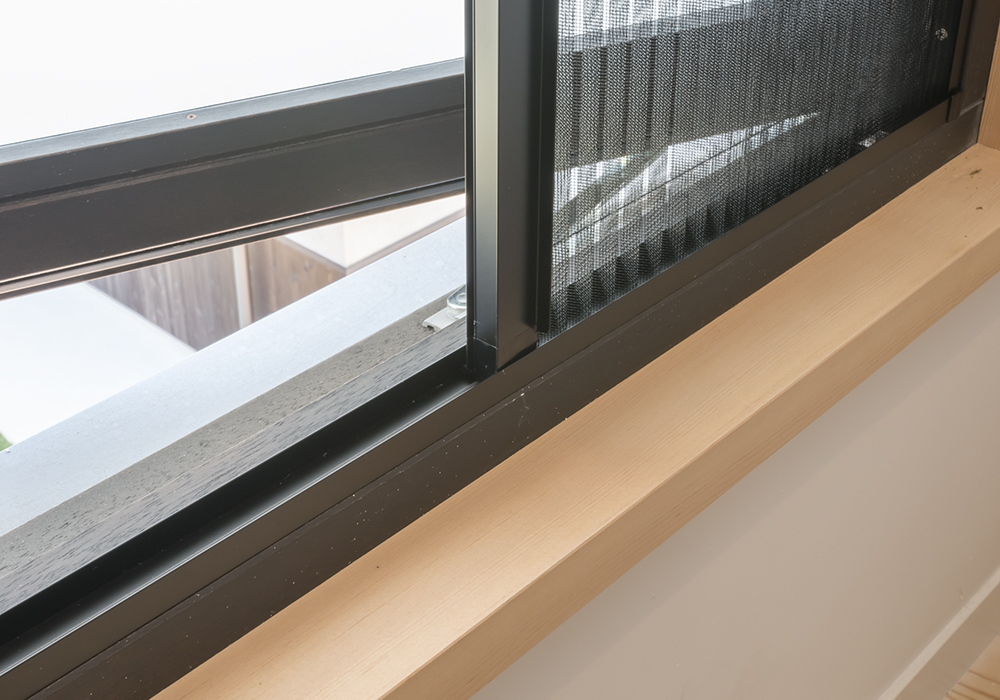

Pleated net will be folded when sliding and retracting the unit.

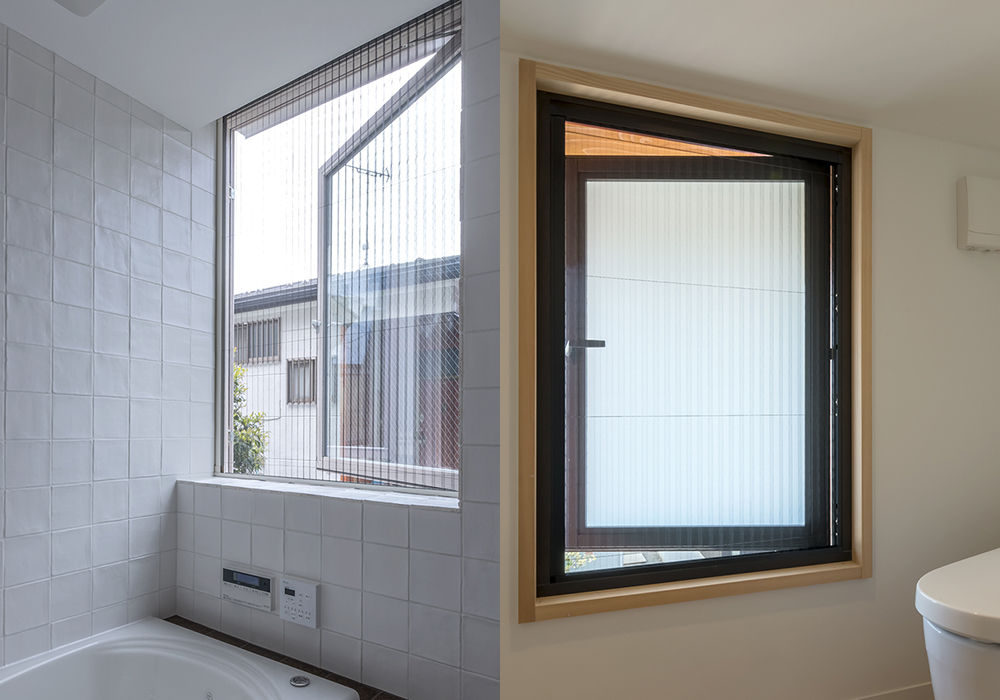

Suitable for Bathrooms and Wet Areas
Metaco’s PP mesh does not absorb water, making it ideal for use in bathrooms and other moisture-prone areas.
Smooth Operation with Light Force
The screen opens and closes effortlessly with a gentle push using just one hand.

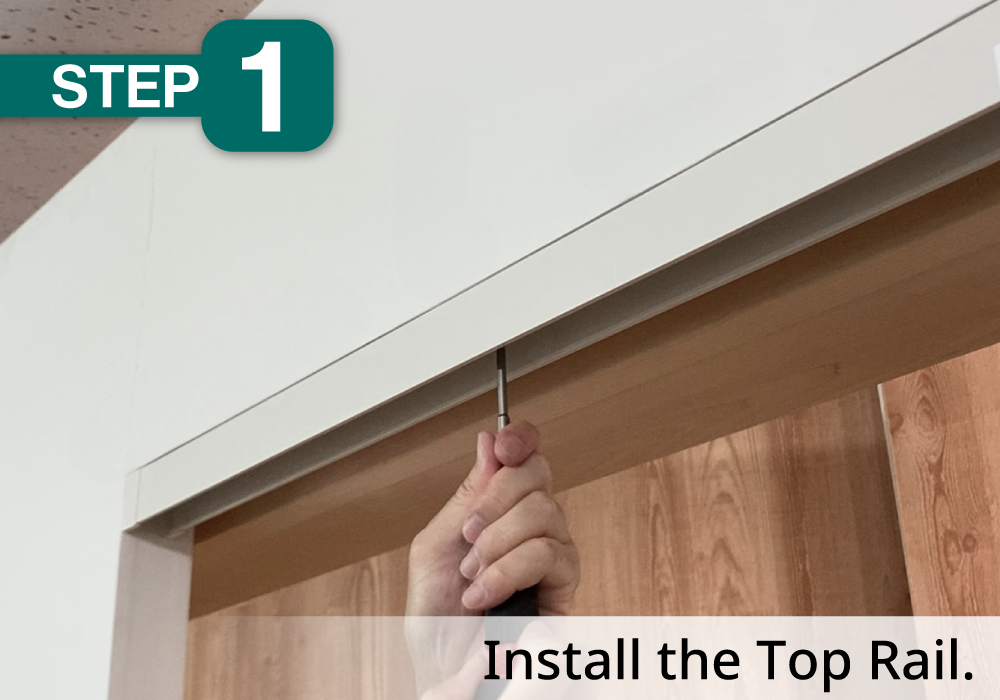

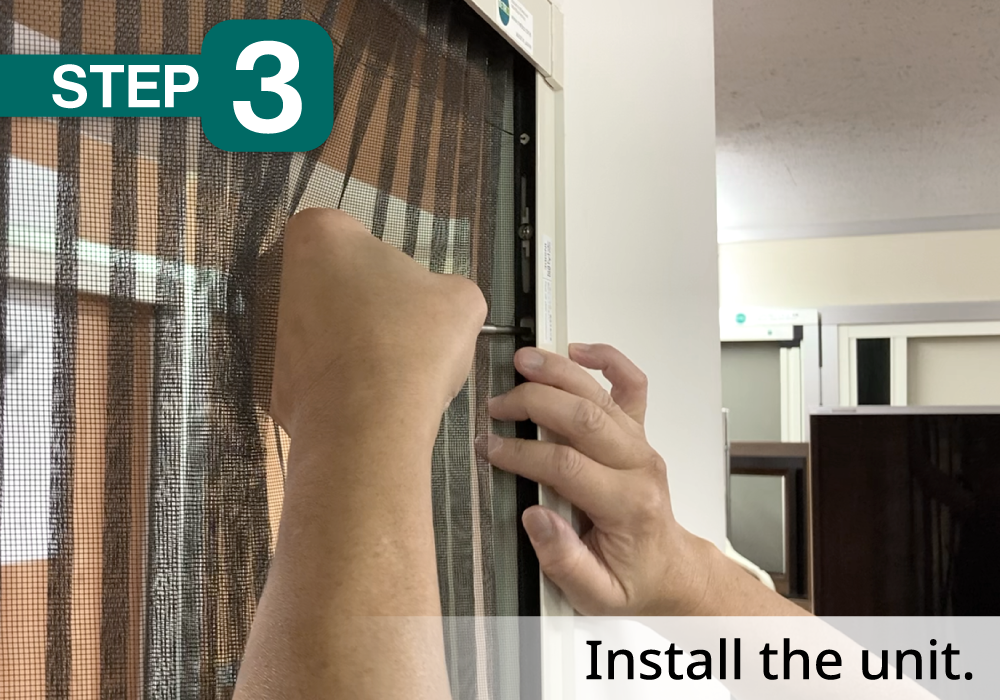

Easy Installation
Effortless setup, instant enjoyment
Specification

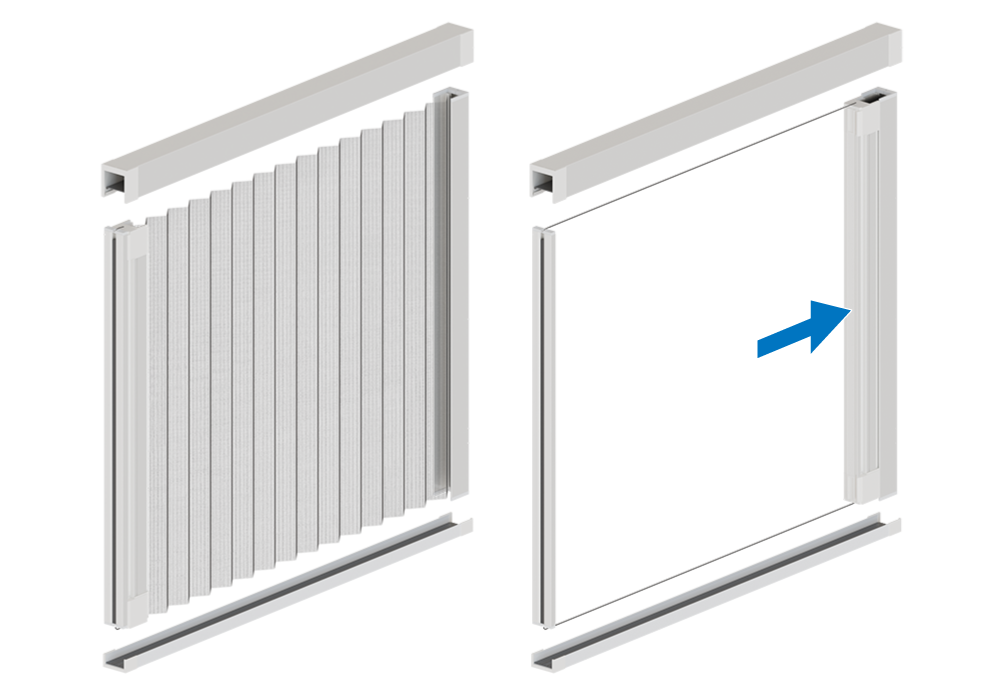

Single door

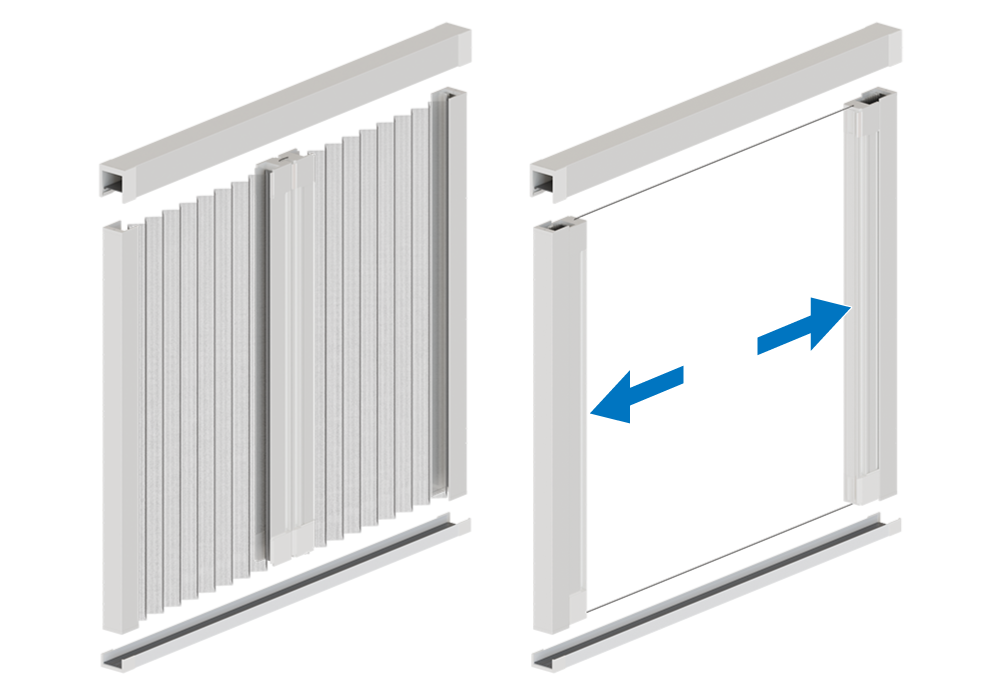

Double door

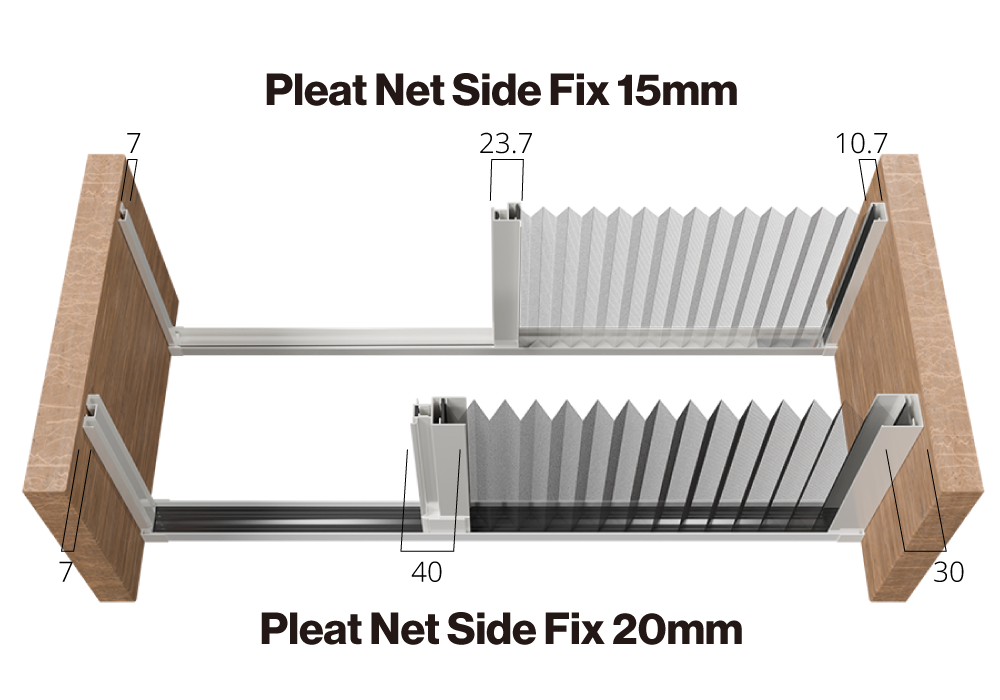

Size Comparison

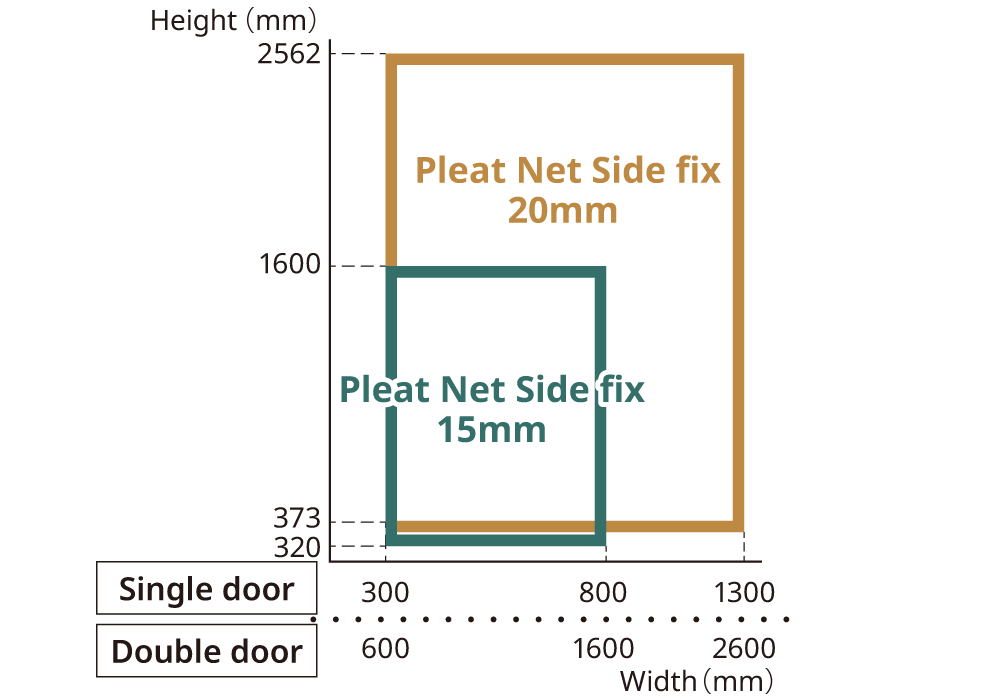

Workable sizes
The above production limitation chart is only a guide to the scope of production.
Please contact us for details.

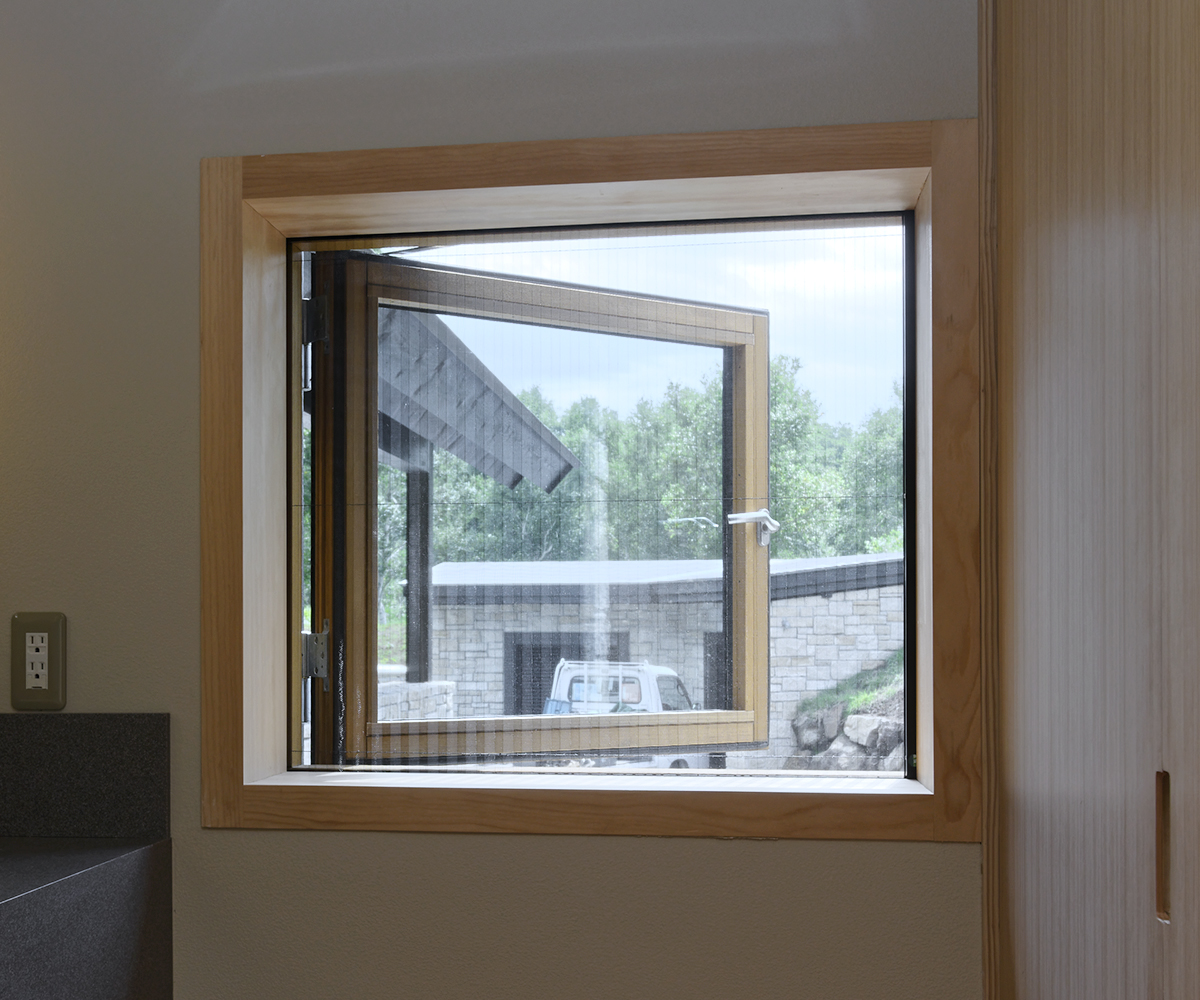

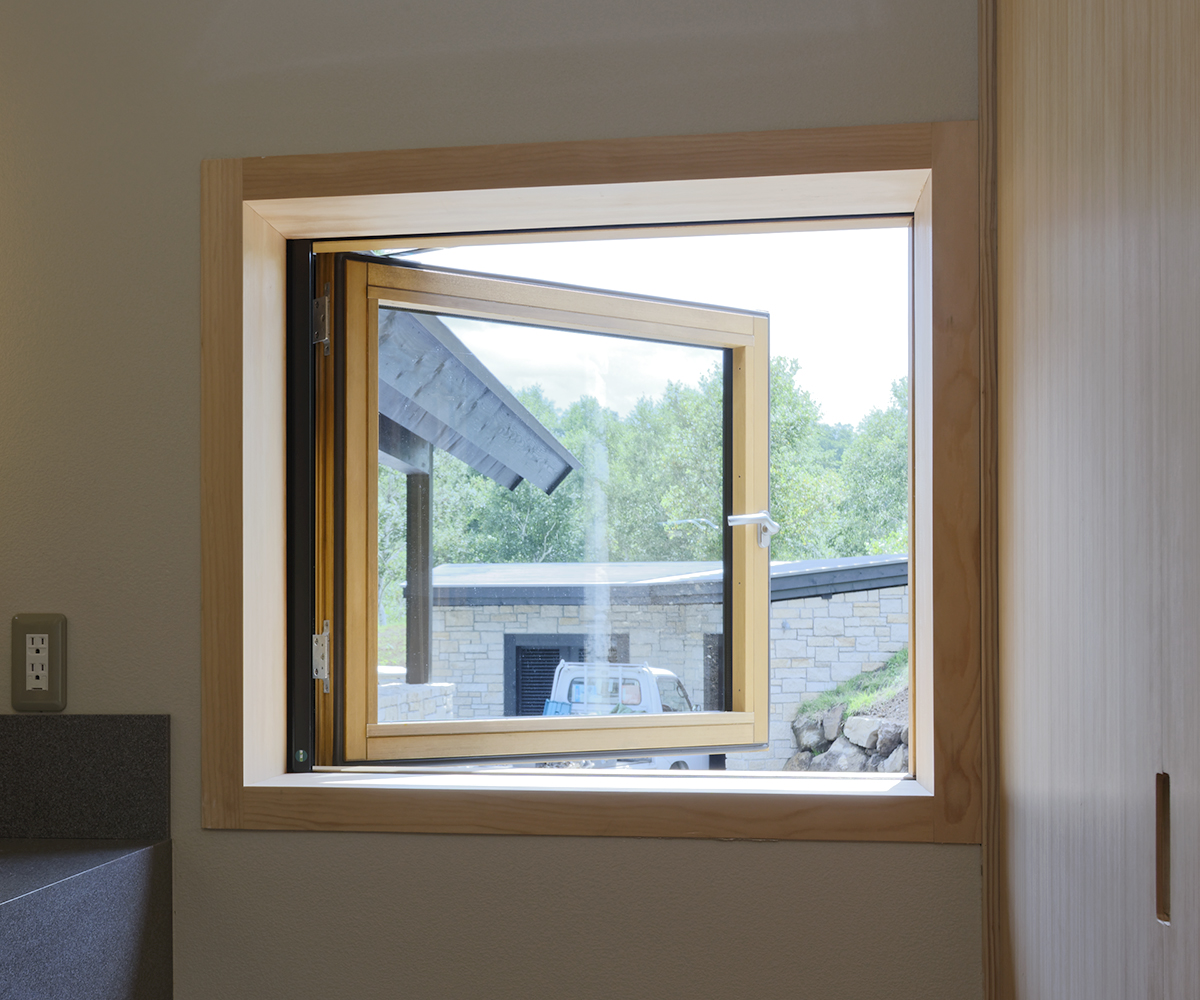

The screen frame is embedded within the surrounding structure, creating a clean and streamlined appearance around the window.
- Please note that a recessed frame must be prepared during the design phase for proper installation.
For detailed dimensions and installation requirements, please refer to the architectural drawings.
About Pleat Net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Net with Stamp-pleating Technology achieves higher rigidity and mechanical resistance keeping the entire screen upright.
Welded intersections to minimize mechanical failure of the mesh.
Method of Measuring

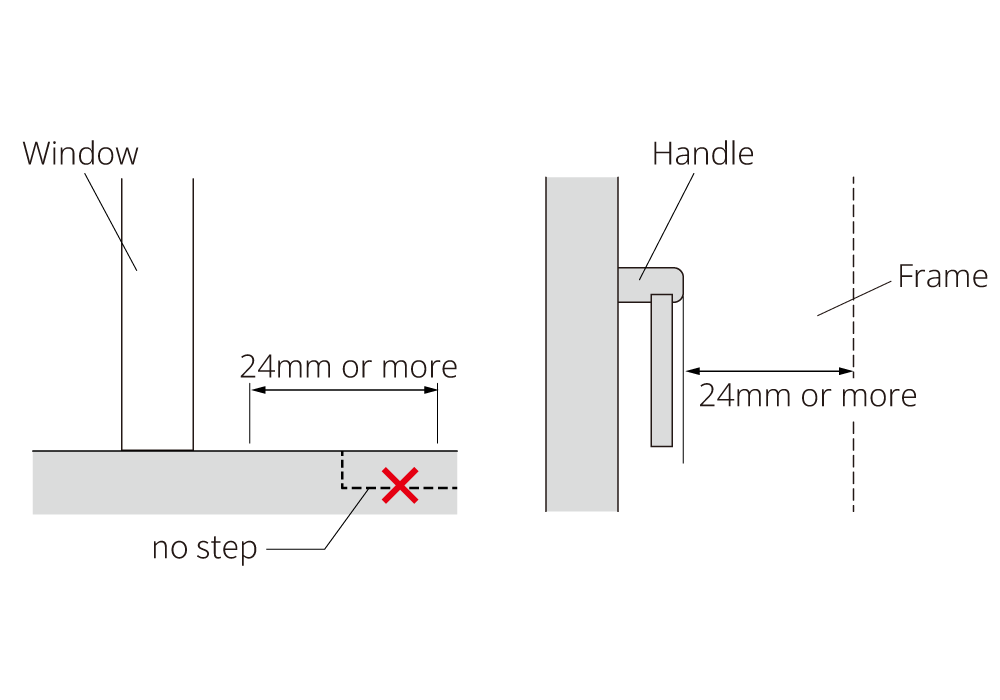

Installation Conditions
- Check if there is no obstacle on the frame or at the floor and if there is more than 24mm space for the installation.
- No obstacle interferes with the insect screen installed.
- All 4 frames are right-angled at the opening.
Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
Product adjustment dimensions are width and height ±3mm.
