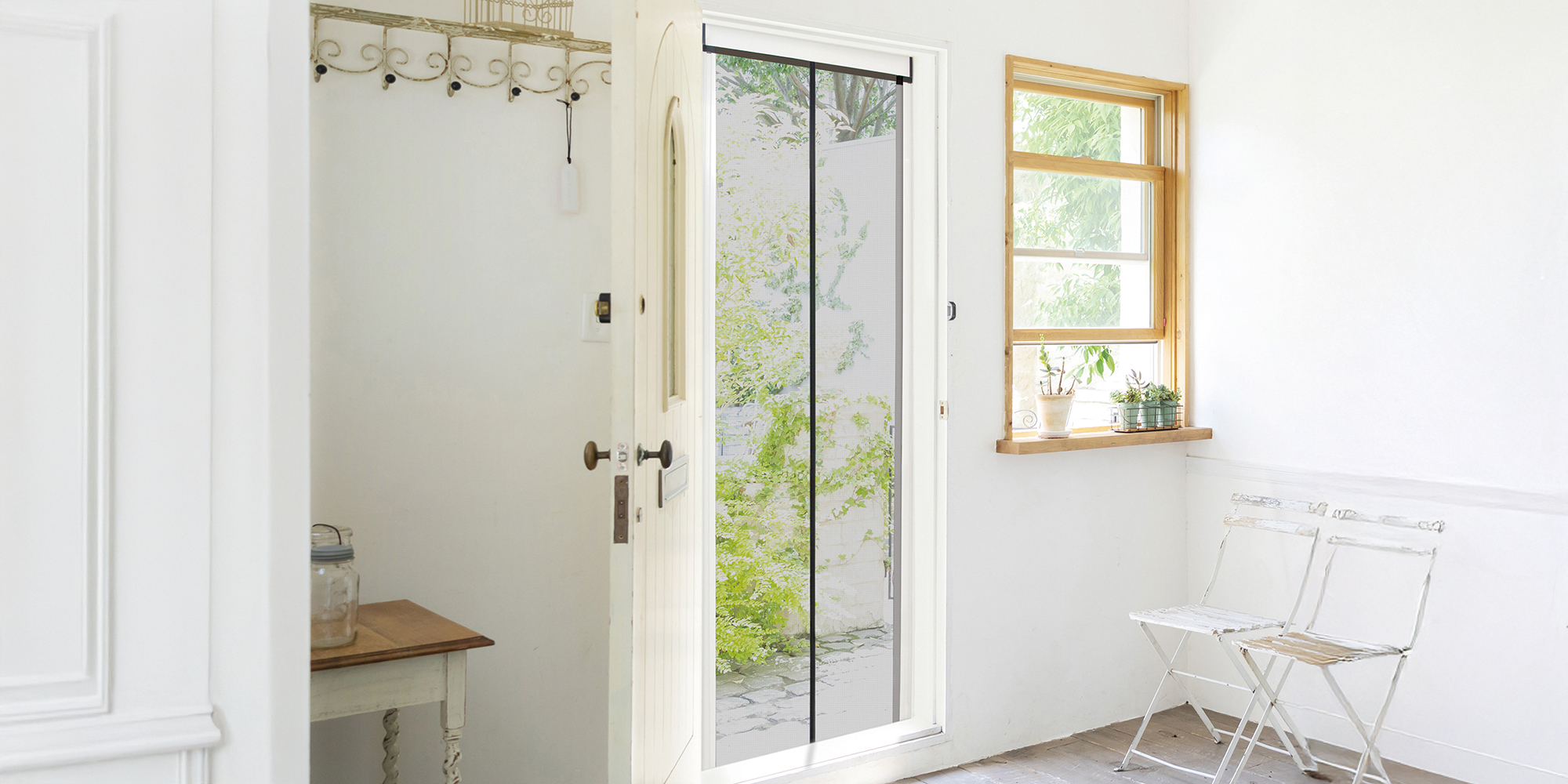

Designed to cover high openings, ensuring exceptionally smooth and stable operation for high product longevity.
Features
Excellent Visibility
The roller screen features a specially designed mesh that provides exceptionally clear visibility.
Stability with Central Axis
The central axis ensures smooth and stable operation.
Also supports screen heights up to 3,000 mm.

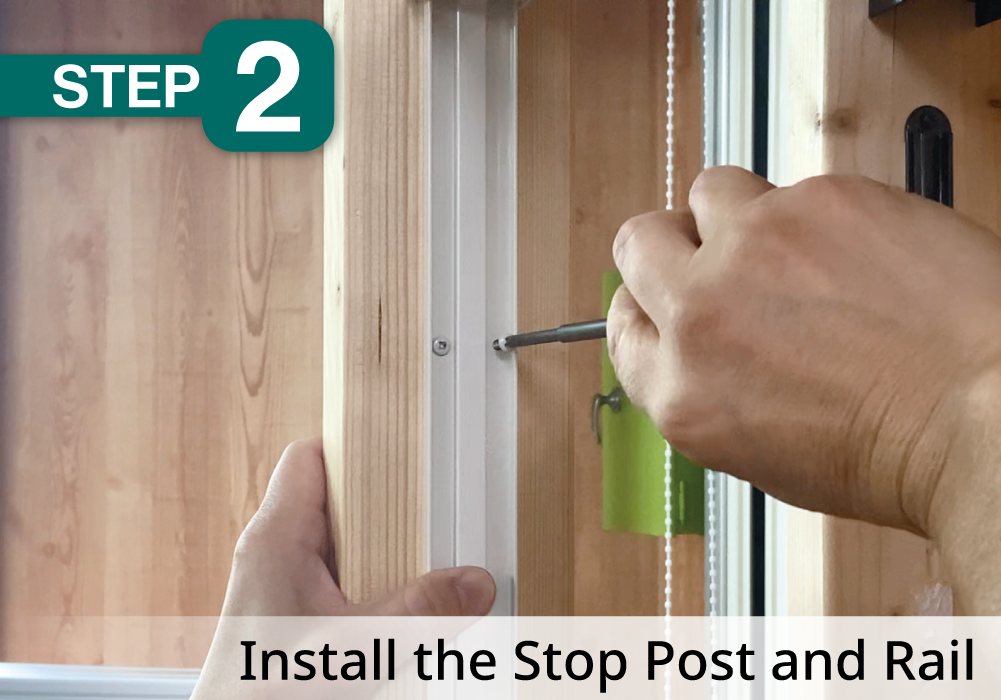

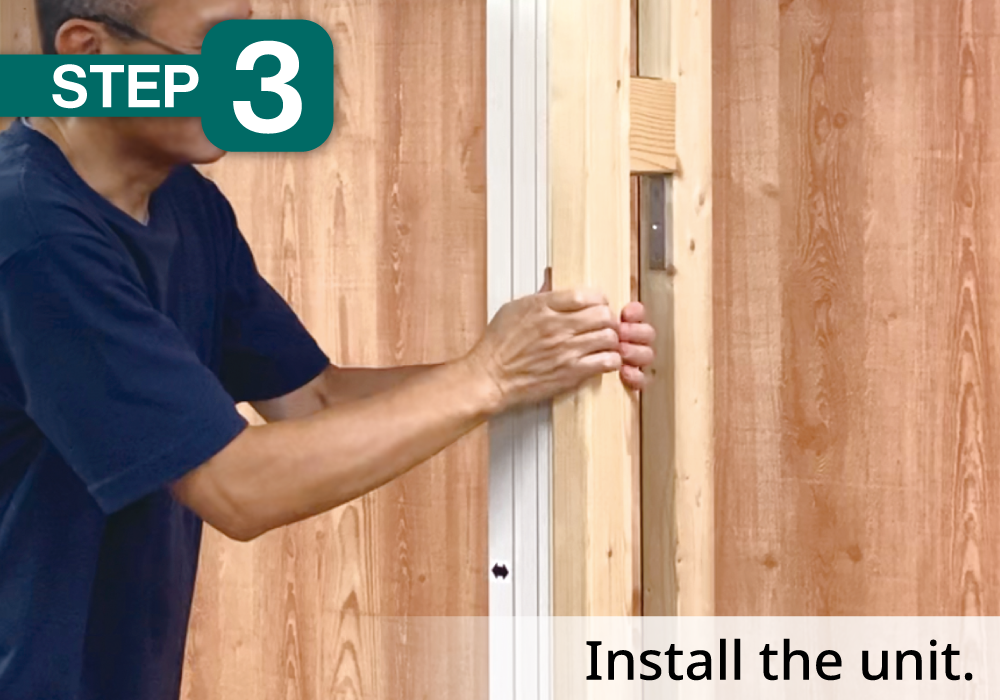

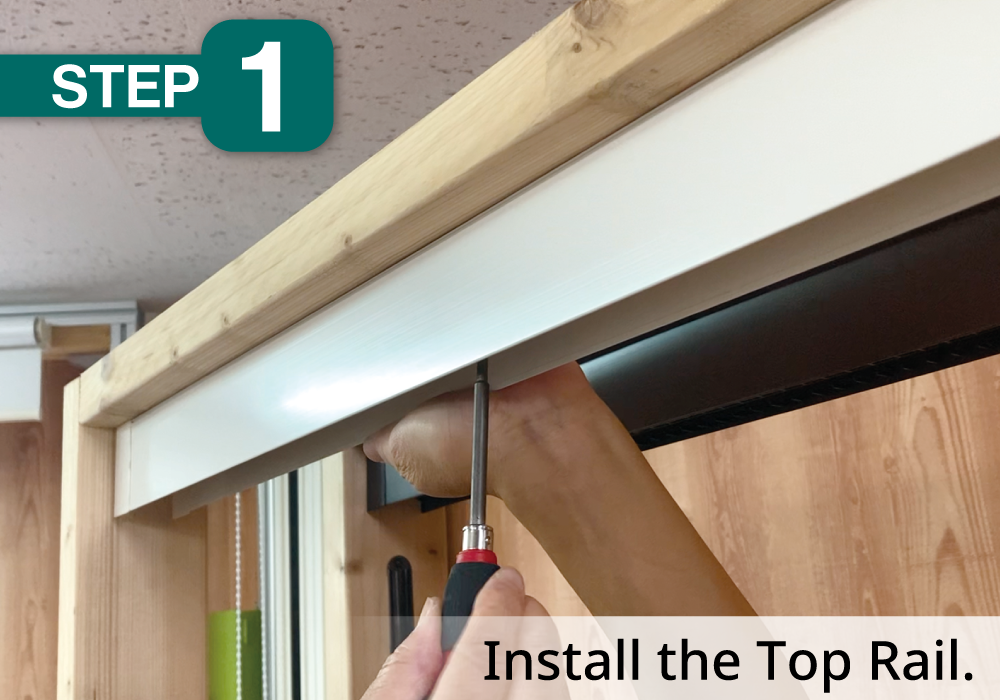

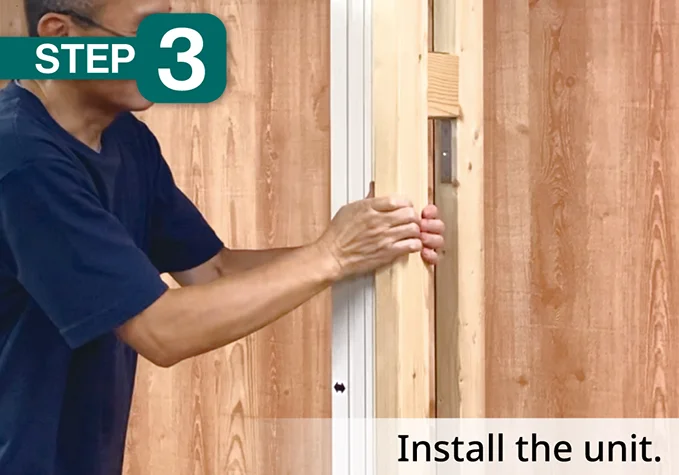

Easy Installation
Effortless setup, instant enjoyment
Barrier-Free Design
Access without limits
Specification

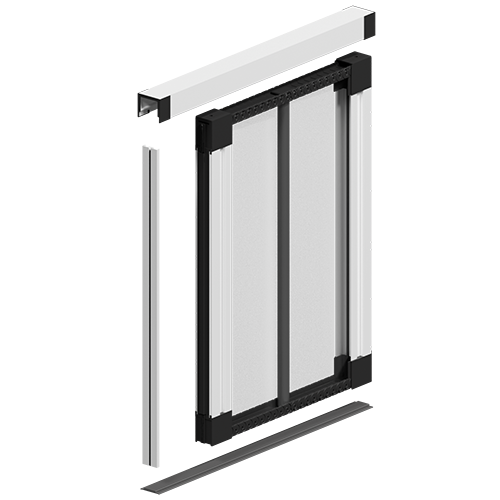

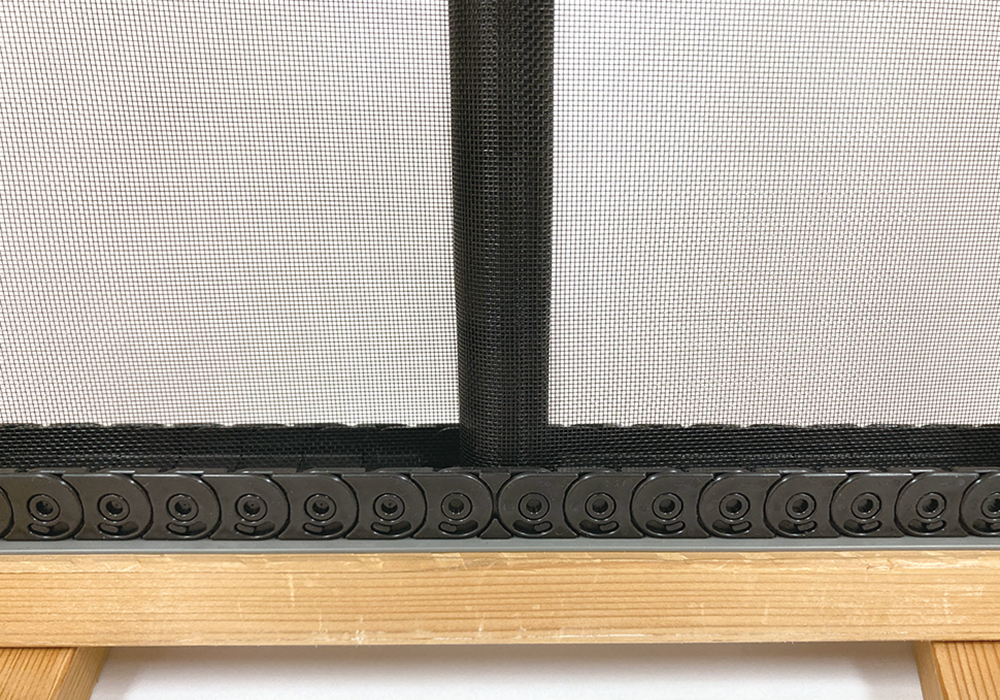

Roller Screen with Centered Roller Pipe.
The Centered Roller Pipe supports both the mesh and caterpillar mechanism, delivering highly stable performance.

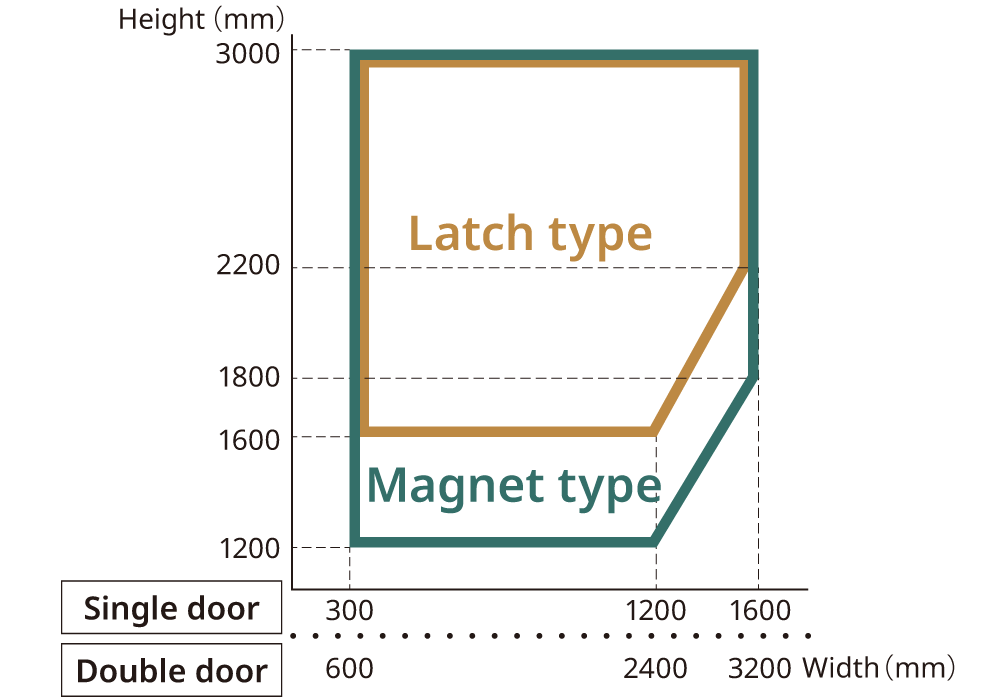

Workable sizes
The above production limitation chart is only a guide to the scope of production.
Please contact us for details.
About the net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Welded intersections to minimize mechanical failure of the mesh.
Method of Measuring

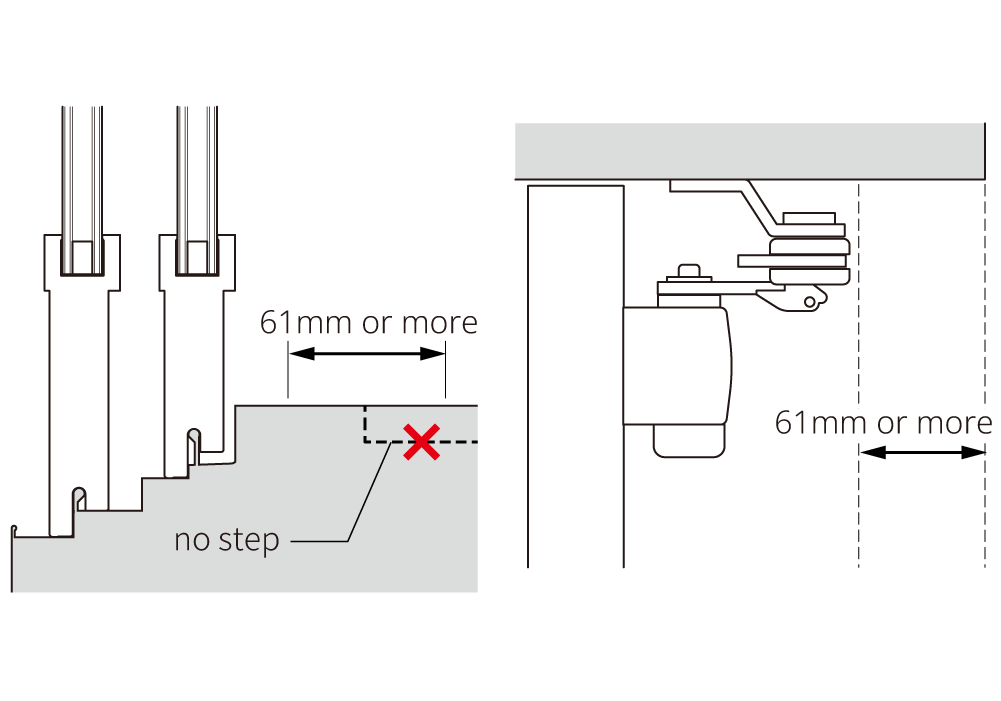

Installation conditions
- There should be no step or height difference on place installing.
- Make sure that door knob, handle, closer do not interefere the screen door.
- Installing location opening must be parrallel and perpendicular.

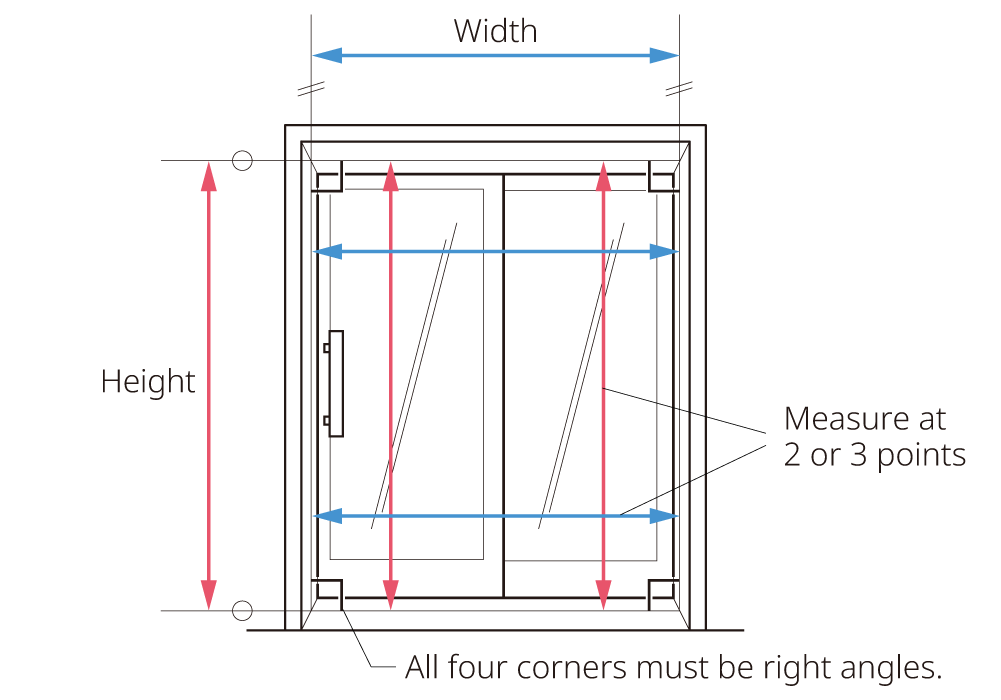

Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
The top margin of the product allows you to adjust ±5mm in height.
