A retractable insect screen that allows for quick and effortless net replacement when the net is stained or damaged.
The screen unit can be easily detached for a quick and easy water wash.
Features
Retractable
Pleated net will be folded when sliding and retracting the unit.
Smooth Operation with Light Force
The screen opens and closes effortlessly with a gentle push using just one hand.
Easy Installation
Effortless setup, instant enjoyment

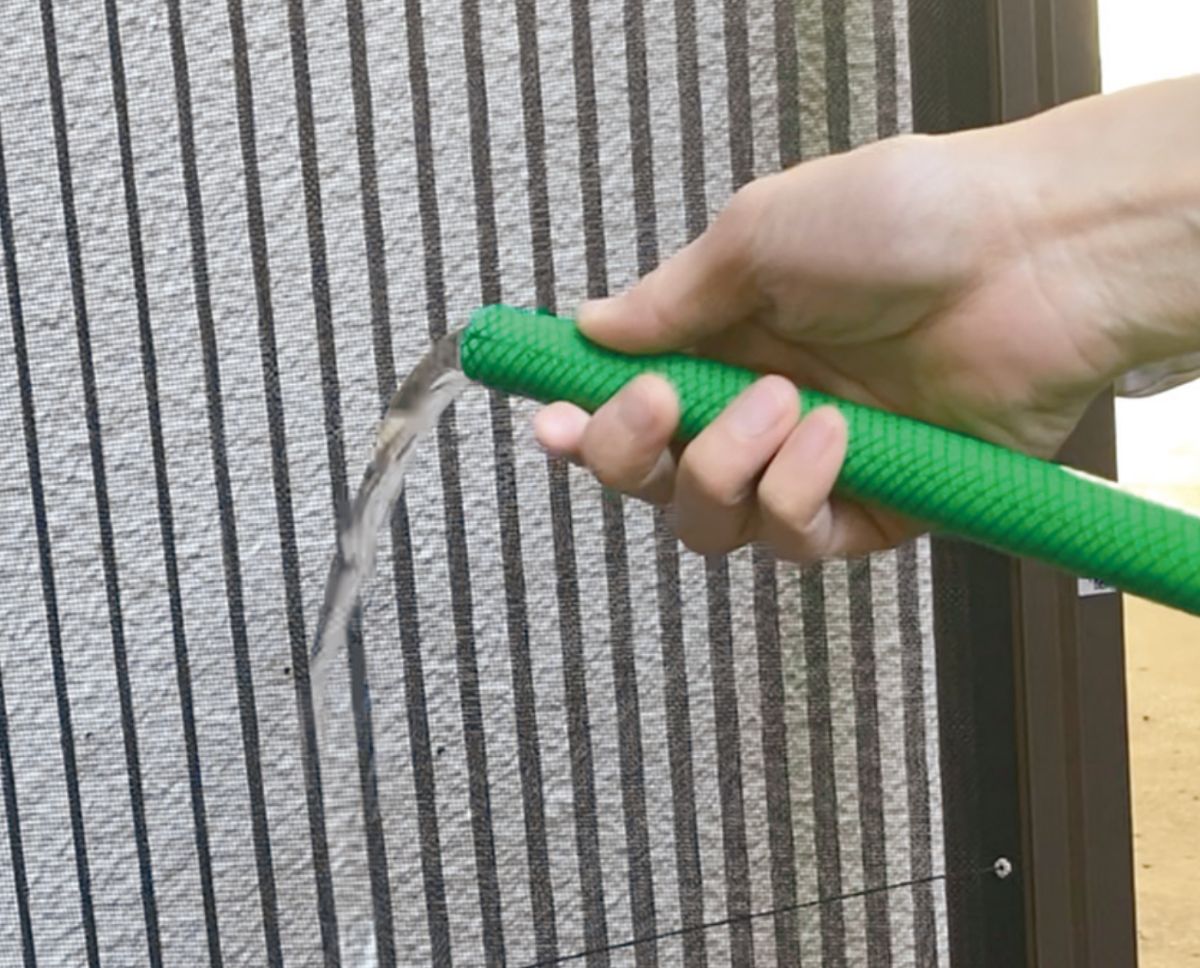

Easy Maintenance
The mesh is made of water-resistant polypropylene (PP), allowing for easy cleaning with water.
When the mesh becomes worn, it can be replaced independently without replacing the entire unit.
Barrier-Free Design
Access without limits
Specification

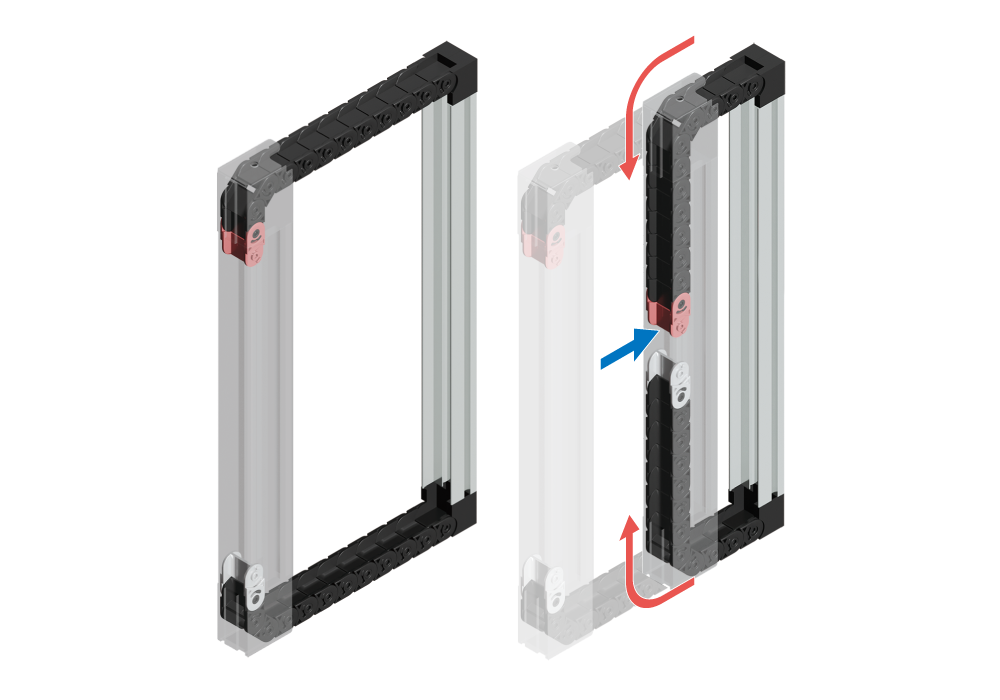

8LME
The upper and lower caterpillars are stored inside the sliding bar when retracted.

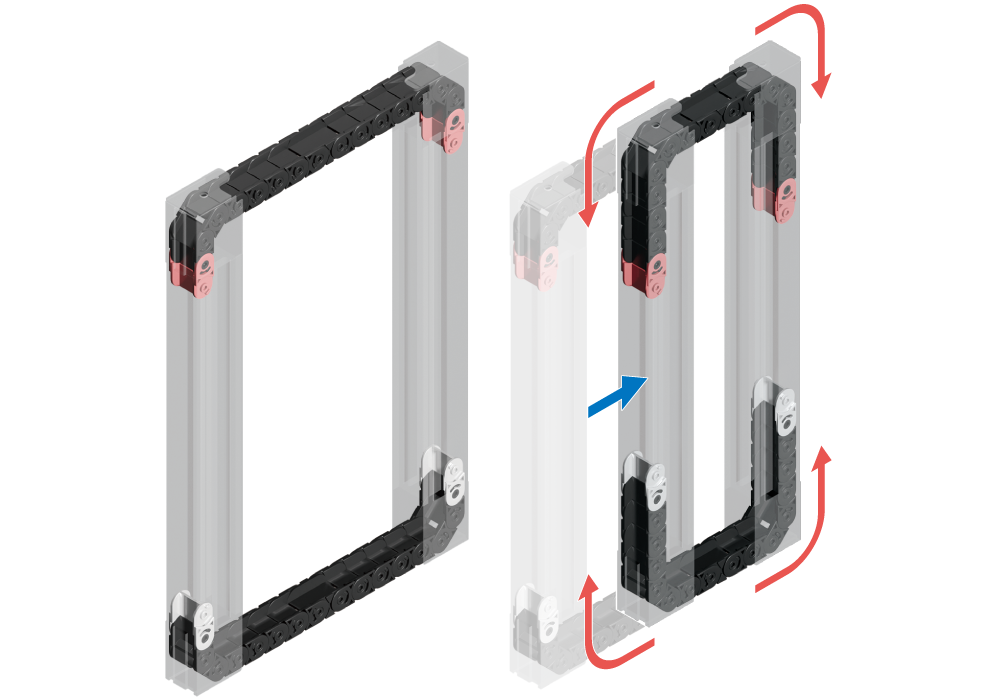

88LME
The caterpillars are stored in both the sliding bar and the storage frame when retracted.

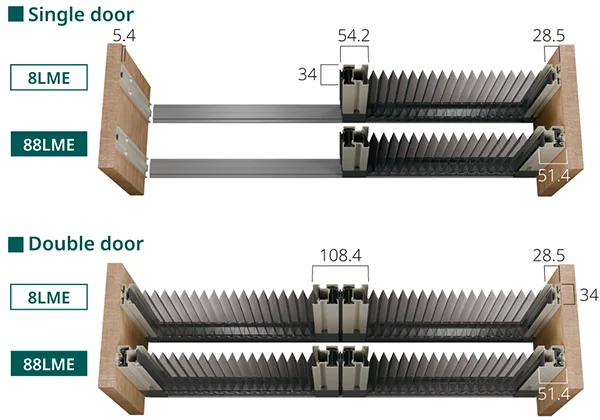

Body Size Comparison by Specification

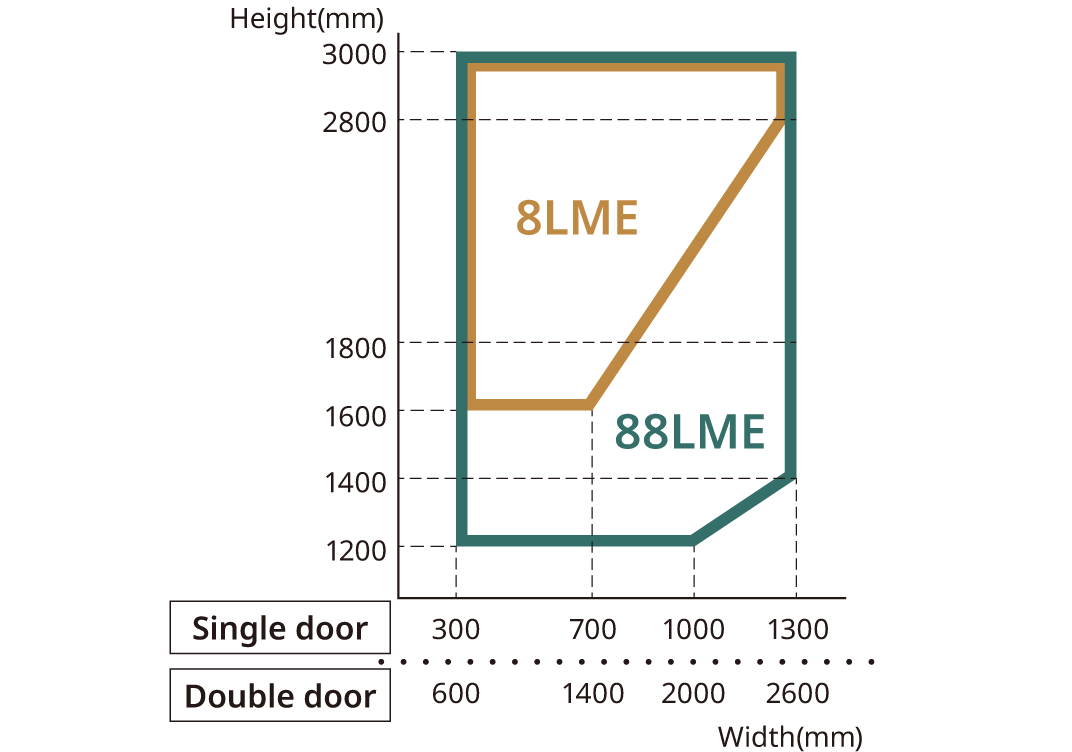

Workable sizes
The above production limitation chart is only a guide to the scope of production.
Please contact us for details.
About Pleat Net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Net with Stamp-pleating Technology achieves higher rigidity and mechanical resistance keeping the entire screen upright.
Welded intersections to minimize mechanical failure of the mesh.
Net Colors
Black
Provides a clear view and allows you to enjoy the scenery.
Gray (H ≤ 2600 mm)
Offers a shading effect and reduces visibility from outside.
How to measure

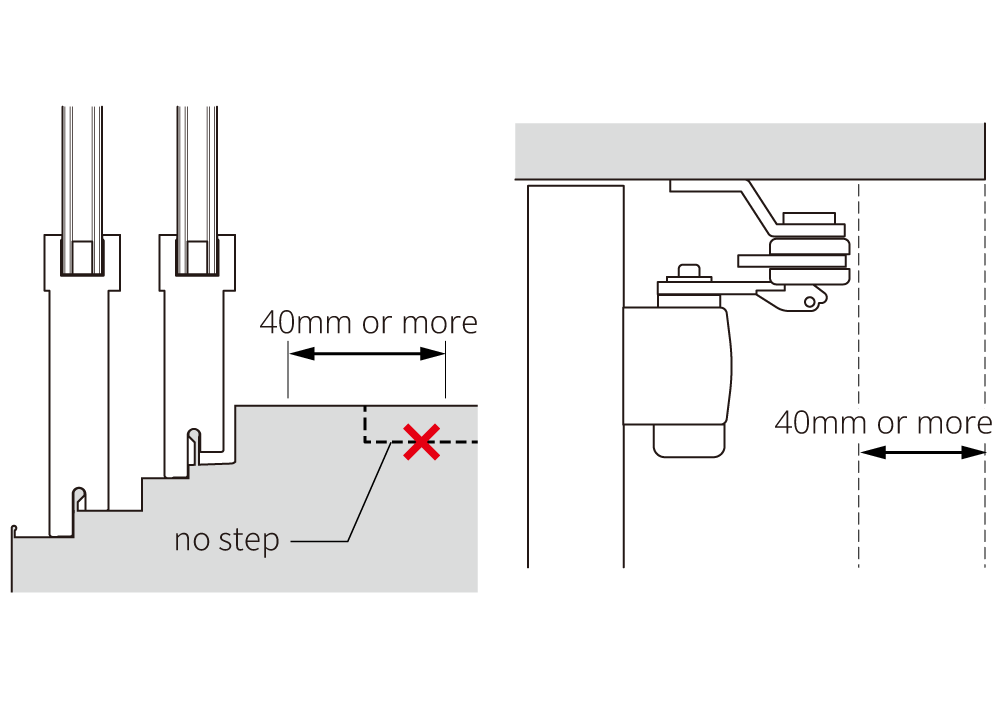

Installation conditions
- There should be no step or height difference on place installing.
- Make sure that door knob, handle, closer do not interefere the screen door.
- Installing location opening must be parrallel and perpendicular.。
Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
The top margin of the product allows you to adjust +10 / -20mm in height.
