Features an enhanced wind-resistant function maintaining its smooth and stable performance even covering expansive openings.
Features

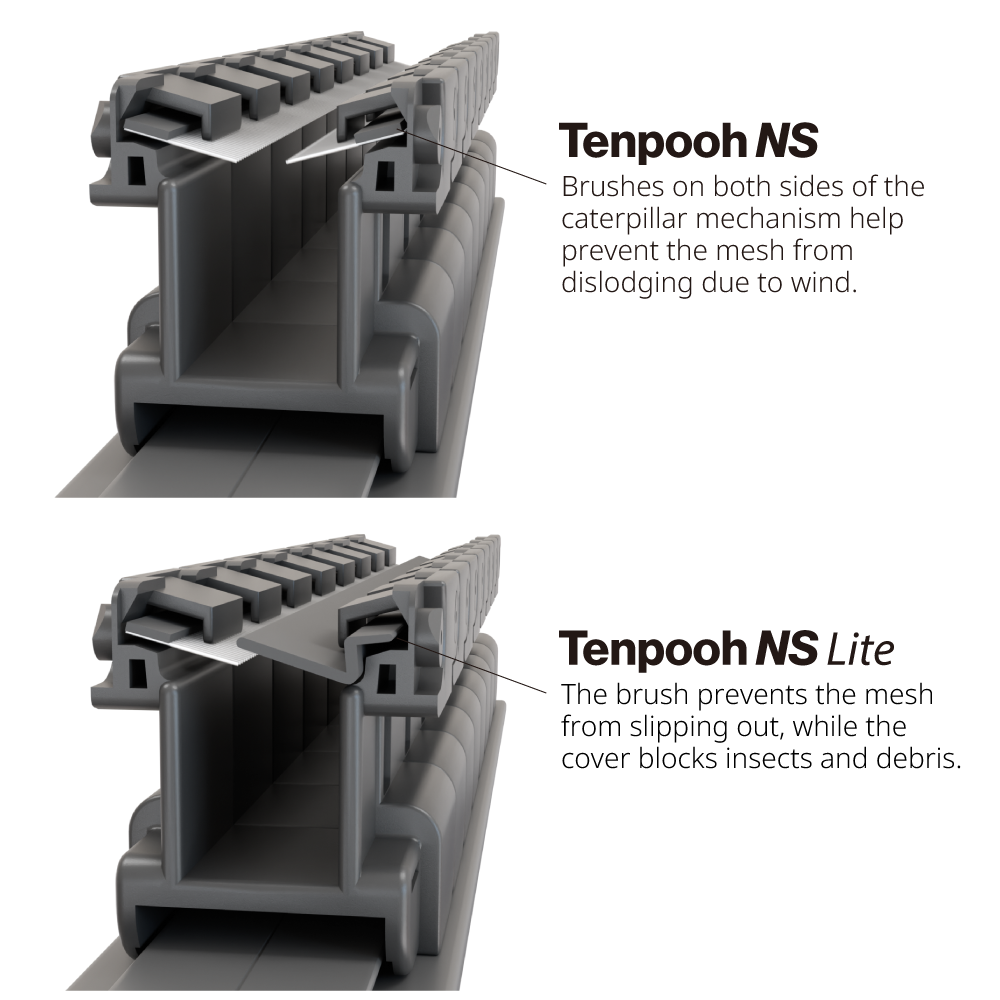

Equipped with a New Caterpillar Mechanism

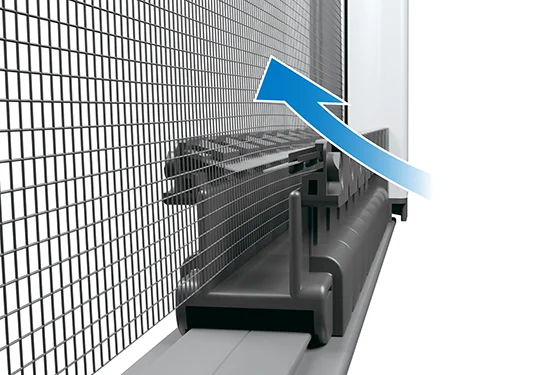

The new caterpillar mechanism features an integrated brush that helps prevent the mesh from slipping out due to wind or other external forces.
Excellent Visibility
The roller screen features a specially designed mesh that provides exceptionally clear visibility.
Adaptable to Various Openings
Supports a wide range of openings up to 3,600 mm in width and 2,600 mm in height.

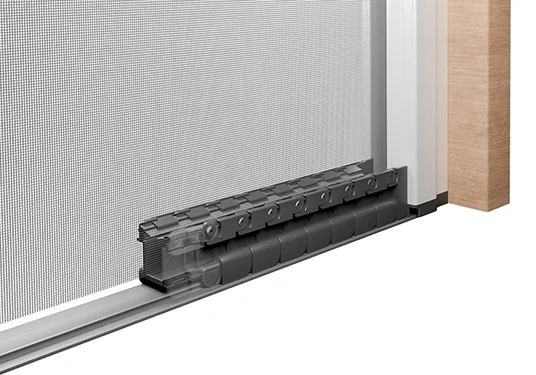

Smooth Operation
Our original caterpillar mechanism ensures smooth opening and closing.
Even if released midway, the screen remains in place thanks to its safety-conscious design.
Barrier-Free Design
Access without limits
Specification

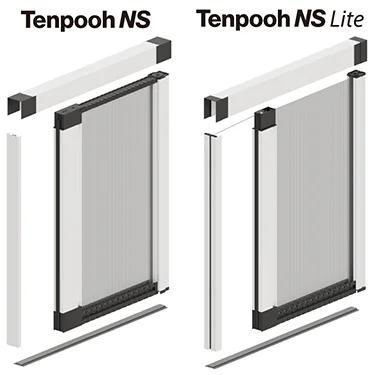

Single door
Tenpooh NS is a new roller screen model equipped with the updated caterpillar mechanism.
NS Lite features the same mechanism but eliminates the upper caterpillar, resulting in a simplified structure.
New Caterpillar

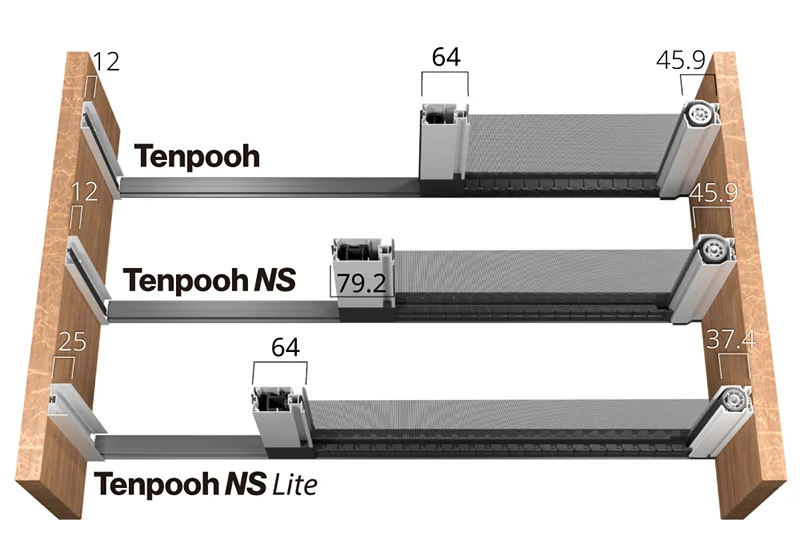

Size Comparison
| Max Width | Max Height | ||
|---|---|---|---|
| Single door | Double door | ||
| Tenpooh | 1800mm | 3600mm | 2600mm |
| TenpoohNS | 1800mm | 3600mm | 2600mm |
| TenpoohNS Lite | 1220mm | 2440mm | 2600mm |
※For exact specifications, please contact us.
About the net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Welded intersections to minimize mechanical failure of the mesh.
