Designed to offer maximum airflow and a clear view with consistently smooth and stable performance.
Features
Excellent Visibility
The roller screen features a specially designed mesh that provides exceptionally clear visibility.
Adaptable to Various Openings
Supports a wide range of openings up to 3,600 mm in width and 2,600 mm in height.
Easy Installation
Effortless setup, instant enjoyment
Smooth Operation
Our original caterpillar mechanism ensures smooth opening and closing.
Even if released midway, the screen remains in place thanks to its safety-conscious design.
Barrier-Free Design
Access without limits
Specification
main body of a screen door
The roller net is retracted by a motor and the screen opens and closes using a caterpillar mechanism. Each screen unit is larger in size compared to a pleat net, with a maximum width of 1,800 mm per unit (compared to 1,300 mm for pleat nets).
Size Comparison
| Max Width | Max Height | ||
|---|---|---|---|
| Single door | Double door | ||
| Tenpooh | 1800mm | 3600mm | 2600mm |
| TenpoohNS | 1800mm | 3600mm | 2600mm |
| TenpoohNS Lite | 1220mm | 2440mm | 2600mm |
※For exact specifications, please contact us.
About the net
100% Polypropylene Net
Non-coated (non-resin-treated); PVC and Formaldehyde free.
Lightweight, high chemical resistance, and good dimensional stability.
Finer mesh (20mesh) than in standard used insect screens (18mesh) Better protection against tiny insects.
Polypropylene in single, continuous strands, versatile and durable.
Smooth surface preventing stains or dirt; easier to clean and maintain.
Welded intersections to minimize mechanical failure of the mesh.
Method of Measuring

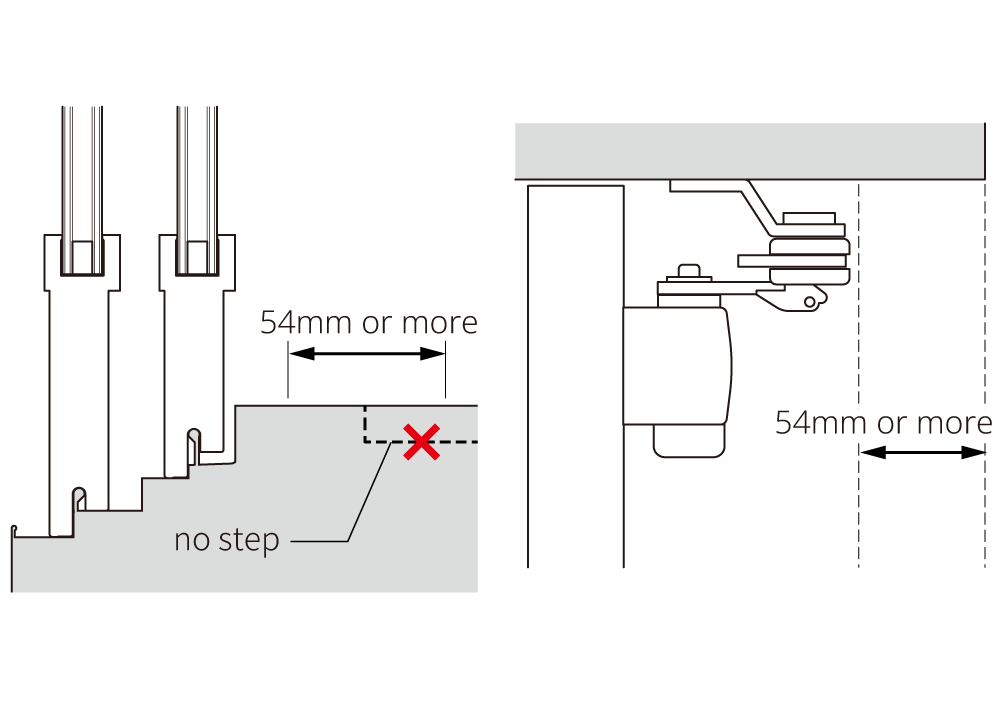

Instllation conditions
- There should be no step or height difference on place installing.
- Make sure that door knob, handle, closer do not interefere the screen door.
- Installing location opening must be parrallel and perpendicular.
Check the install location and measure the width and height of your opening.
- Measure the opening width and height in 2 or 3 different places, as many openings are not square.
- When placing your order, use the biggest size of the measurements.
The top margin of the product allows you to adjust ±5mm in height.
