Product
Metaco has developed Roller Blind component parts since 1973 and has accumulated its know-how & technology.
As the result, Metaco can offer various types of component parts to meet each customer's demand.
Metaco can supply very functional and unique component part to enjoy satisfied performance.
Specification
Spring Drive
The screen automatically retracts using a built-in spring mechanism.
Hand Drive
The screen is manually retracted by pulling a beaded cord.
| MRS3 | MRS4 | |||
|---|---|---|---|---|

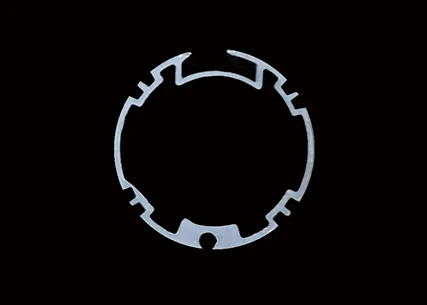

| Roller tube | φ30mm
 |

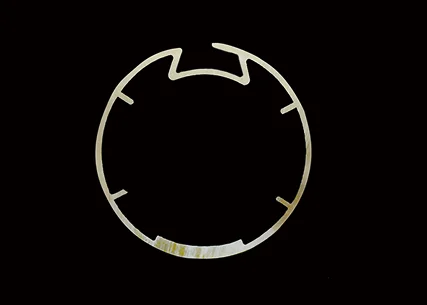

φ40mm
 |
||
| Drive | Spring Drive | Hand Drive | Spring Drive | Hand Drive |
| Max width | 2000 | 2600 | 3000 | |
| Max height | 2000 | 3000 | 4000 | |
Spring Drive
| System | MRS40 |
|---|---|
| Category | Medium Duty |
| Roller Tube Diameter * Aluminum Extrusion |
40mm |
| Max Blind Size: Width/Height | W:3000mm / H:3000mm |
| Suitable Screen Weight: | by 400g/㎡ |
| Speed Control Device | yes |
| Spring Motor type | 7 types |
| Component Part Color | White Ivory |
Hand Drive
| System | MRS40 |
|---|---|
| Category | Medium Duty |
| Roller Tube Diameter * Aluminum Extrusion |
40mm |
| Max Blind Size: Width/Height | W:3000mm / H:4000mm |
| Suitable Screen Weight: | by 400g/㎡ |
| Reduction Gear Ratio | 1 : 5 |
| Spring Booster type | 7 types |
| Unique Bracket system | Joint Bracket |
| Component Part Color | Ivory Black |
